PROJECT OVERVIEW
  • VESSEL TYPE: Tankers
  • Vessel name: 1400 DWT Asphalt/Black Product Tankers
Scope of work
  • Concept Design and Tender Design, including:
  • General Arrangement and Machinery/Cargo Arrangement
  • Tender Specification
  • Midship section and strength calculations
  • Detailed weight and centre of gravity calculations, including weight distribution
  • Lines plans
  • Intact stability calculations
  • Damage stability calculations
  • CFD Lines optimisation
  • Layout of cargo pipe system and cargo tank heating calculation
  • Initial calculations for machinery systems incl. LNG plants
Project specification

Download specification

Designed for worldwide transportation of asphalt/black products with temperatures up to 180 degree Centigrade in 2×6 sections (12 tanks).

The vessel is specially designed for operation on the St. Lawrence Seaway and has PC3 ICE Class.

The machinery is arranged for operation on dual-fuel.

Main Particulars

  • Length o.a.: 135.00 m
  • Length p.p.: 128.00 m
  • Breadth moulded: 23.50 m
  • Depth to main deck: 11.30 m
  • Scantling draught: 7.70 m
  • Design draught: 7.60 m
  • Deadweight at design draught: abt 14160 t
  • Cargo tanks: abt. 14500 cbm
  • Service (90 % MCR): 13 kn

Propulsion

  • MDO, HFO, LNG
  • Main engine: 1 x MAN B&W or WSD Licence (MHI, HHI or Doosan)
  • 7G40ME-B9.3-GI (Tier II) or similar
  • SMCR: approx. 5350 kW at 110 rpm.
  • Aux. power: 3 x 1300 kWe
  • Bow thruster: 750 kW
  • Stern thruster: 550 kW

KEH 13069.01

Classification: DNV, 1A1 Tanker for Asphalt/Bitumen/Oil, ESP, Winterized Cold (-30), SPM, E0, NAUT-OC, VCS-2, BIS, TMON, CLEAN-DESIGN. or corresponding notation in the case of LR (as delegated Class Societies for Transport Canada).

CONTACT US

GET IN TOUCH WITH OUR EXPERTS TO GET QUALIFIED ADVICE ABOUT YOUR IDEAS OR NEEDS

Related references

Chemical Tanker IMO II
  • Vessel name: 6300 DWT Inge Wonsild
Read more
Concept and tender design of LNG TANKER Chemical Tanker 13070.01
LNG TANKER
  • Vessel name: Chemical Tanker IMO II
Read more
8603 DWT tanker
  • Vessel name: 8603 DWT Anne Sif
Read more
8400 m3 Gas Carrier
  • Vessel name: 8400 m3 Gas Carrier
Read more

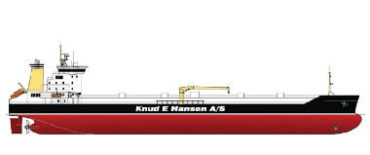

2400 DTW tanker
