PROJECT OVERVIEW
  • VESSEL TYPE: Special Purpose Vessels

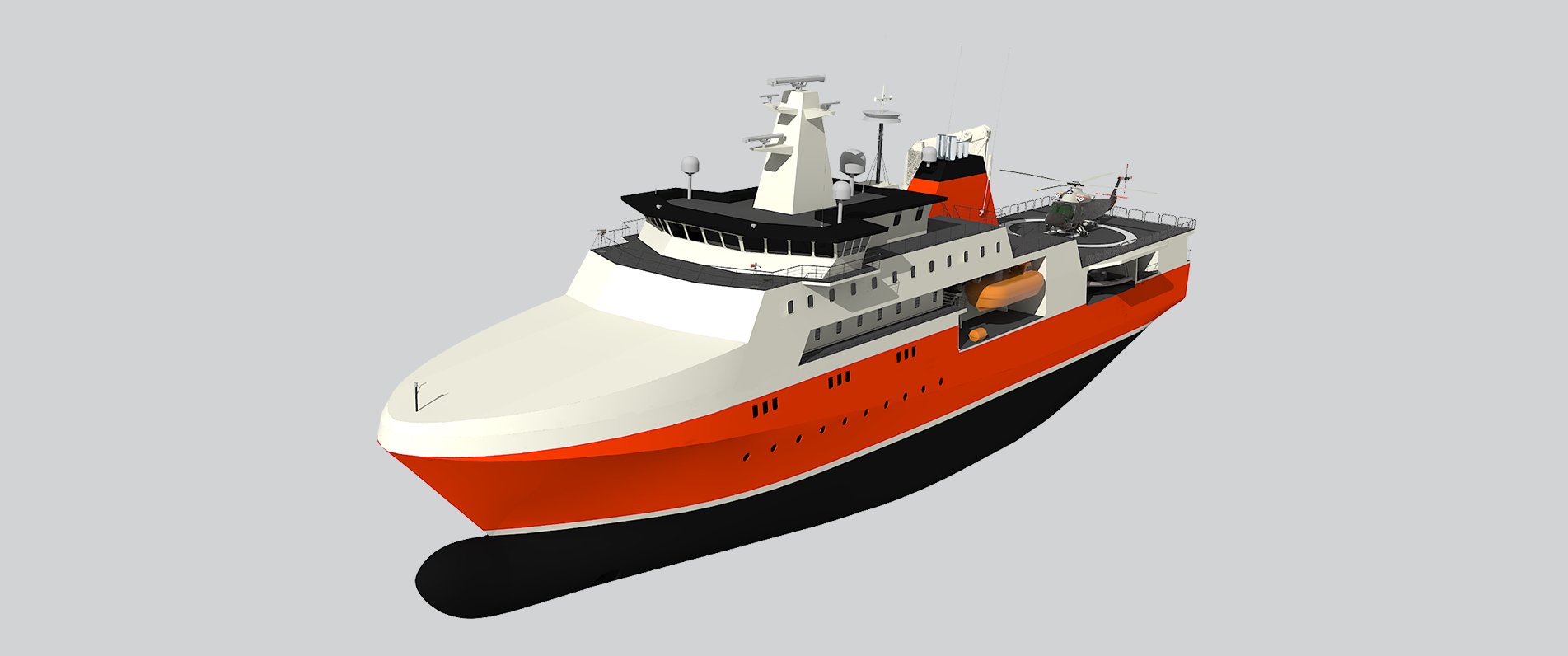

  • VESSEL Name: Southern Ocean Knud
Scope of work

Concept Design including:

  • General arrangement
  • Outline specification
  • Hull lines & hydrostatics
  • Speed & power prediction
Project specification

Download specification

Compete concept design for the Australian Customs Service. The vessel was designed for patrol operations in the heavy seas of the Southern Ocean with good seakeeping performance.
The vessel had a long endurance of 60 days with a range of 20,000nm using an efficient hybrid DM/DE propulsion system. n addition to the crew of 60, austere accommodation was provided for 120 persons. Funding was cancelled by the Government and vessel has not been realized yet.

TECHNICAL DATA
  • Length o.a. 90.00 m
  • Length p.p. 76.00 m
  • Breadth moulded 17.0 m
  • Depth to deck 3 7.70 m
  • Draught, Design (max.) 5.70 m
  • Draught, Scantling 5.90 m
  • Deadweight 1,100 t
