PROJECT OVERVIEW

Vessel Type: Tanker

Vessel Name: 100,000 m3 co2 tanker Floating Storage and Injection Unit

Scope of work

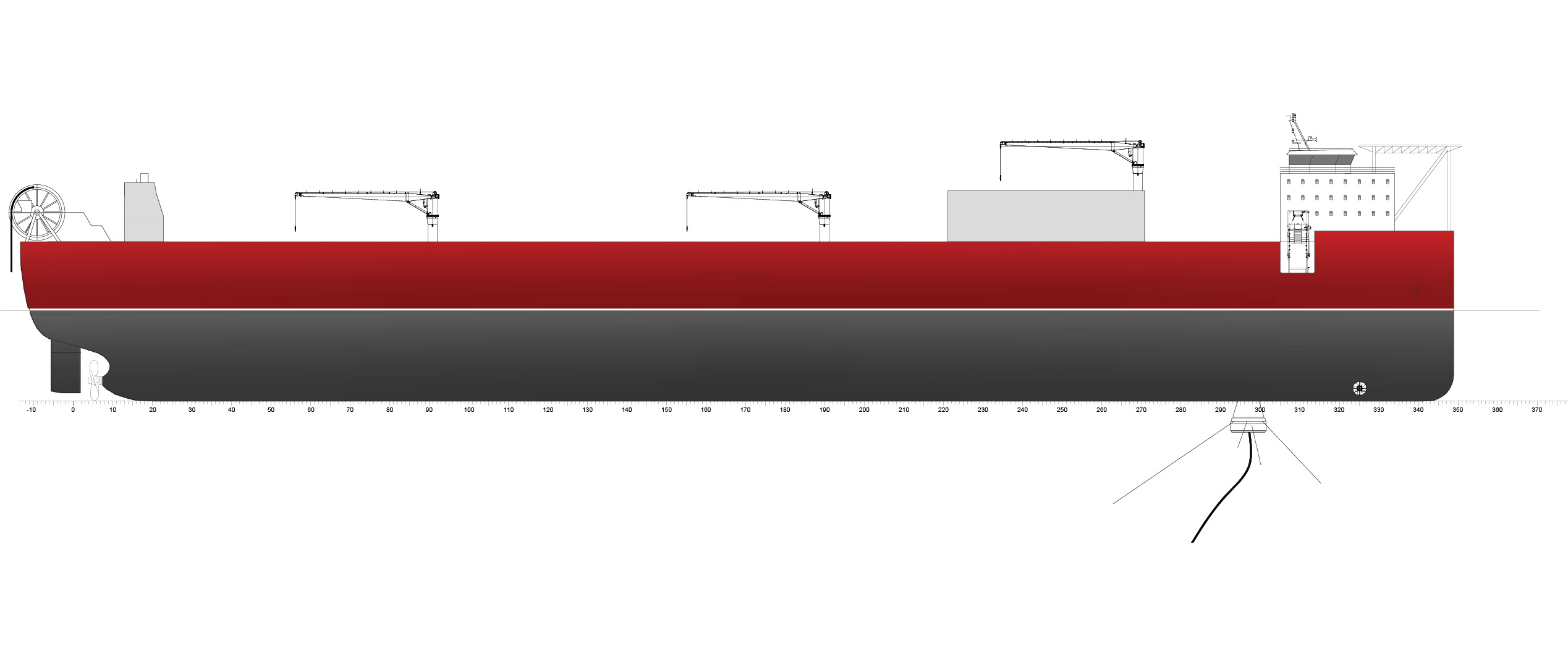

  • Conceptual General Arrangement
Project specification

Download specification

The platform is a floating storage and injection unit dedicated to liquified CO2 handling. The platform is positioned at sea and connected to injection wells via a submerged turret system.

The CO2 is transferred from the shuttle tankers supporting the to the floating storage and injection unit via a stern loading system and the liquified CO2 is stored in five tanks of the
lattice type.

The tanks can hold liquified CO2 at 6.9 bar suitable for the pressure delivered by the shuttle tanker.

The platform is equipped with CO2 injection pumps and heaters to condition the CO2 to injection pressure and temperature. Boil-off cooling machinery is provided for long-term storage
of the liquified CO2 onboard. Power interface to offshore wind turbine energy parks are provided.
