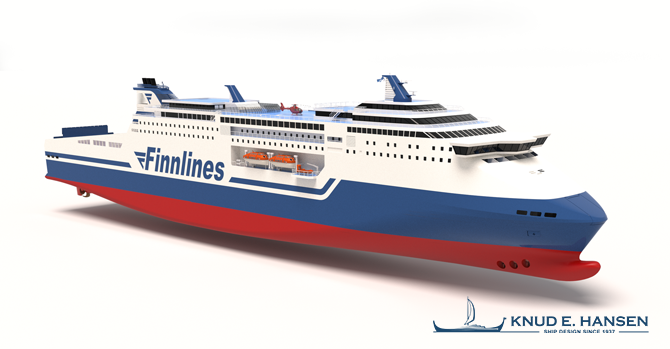

  • VESSEL Name: 5100 lm Superstar RoPAX for Finnlines
Scope of work
  • Concept Design
  • Tender Design

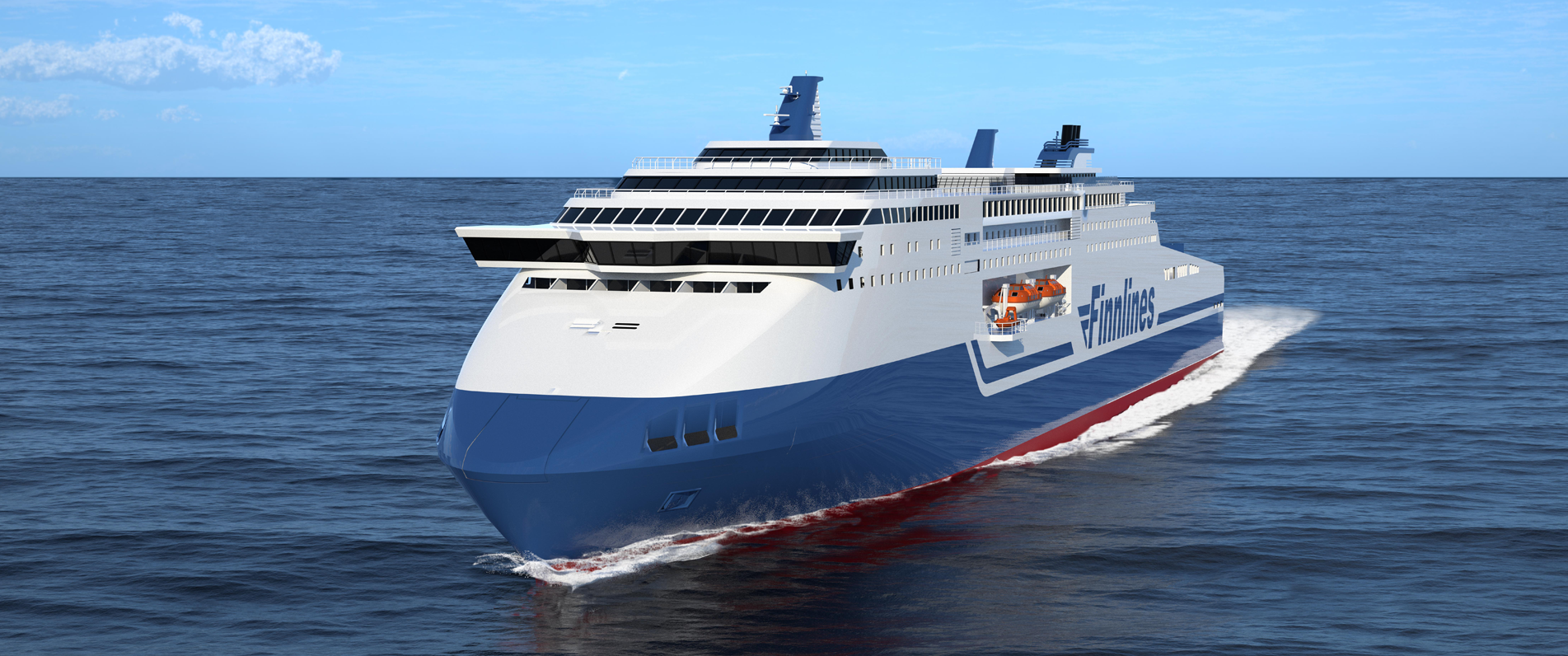

The vessel is a roll-on roll-of passenger (RoPax) ferry, designed for operation between Kapellskär (Sweden), Langnäs (Åland) and Naantali (Finland), summing up to one daysailing and one nightsailing during 24 hours. She meets the highest technical and environmental standards and has been optimized for both 16 kn and 19 kn service speed.

The vessel has been designed with high focus on fast and efficient handling of cargo for short turnaround time in port. Drivers and passengers experience is concentrated around the scenic views and high on-board comfort, including entertainment, spaarea, café’s, lounge like public areas and working spaces.

The Concept and Tender Design was developed, in close cooperation with Owner, from scratch into arrangement drawings, specification, stability calculations (incl. SOLAS 2020), structure drawings, machinery diagrams, CFD optimization etc.

technical data

Length o.a 229.50 m
Length p.o. 216.50 m
Breadth moulded 33.60 m
Draught design 7.00 m
Scantling / summer draught 7.10 m
Depth to deck 3 9.90 m
Deadweight 11,500 t

Passengers 1,212 pax
Cabins 323 pcs
crew 64 pers
Trailer lane length 5,100 m
