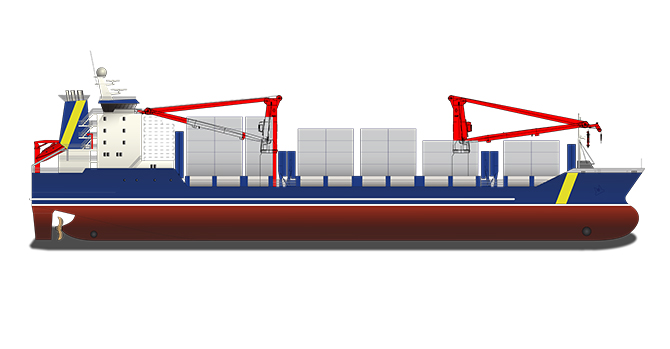

PROJECT OVERVIEW
  • VESSEL TYPE: Special Purpose Vessel
  • VESSEL Name: Multipurpose Cargo Vessel
Scope of work

Concept Design and Tender Design, including:

  • General Arrangement
  • Tender specification
  • Detailed weight and centre of gravity calculations, including weight distribution
  • Lines plans
  • Intact stability calculations
  • Damage stability calculations
  • CFD Lines optimization
Project specification

Download specification

The vessel is designed for operation worldwide and on the St. Lawrence Seaway and it has PC7 ice class. The machinery is arranged for operation on dual-fuel.

TECHNICAL DATA
  • Length o.a. 135.00 m
  • Length p.p. 128.00 m
  • Breadth moulded 23.50 m
  • Depth to main deck 11.30 m
  • Draught (design) 7.60 m
  • Deadweight 13,736 t
  • Cargo holds 15,234 cbm
  • Containers 292 TEU in holds
  • 687 TEU on hatch covers

Related references

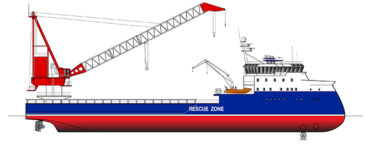

Concept Design of 100 T Crane Vessel
