PROJECT OVERVIEW
  • VESSEL TYPE: Arctic Vessels, Container vessels
  • Vessel name: Multipurpose Polar Vessel
Scope of work
  • Basic Design
  • Participation in model tests Ice/open water
Project specification

Download specification

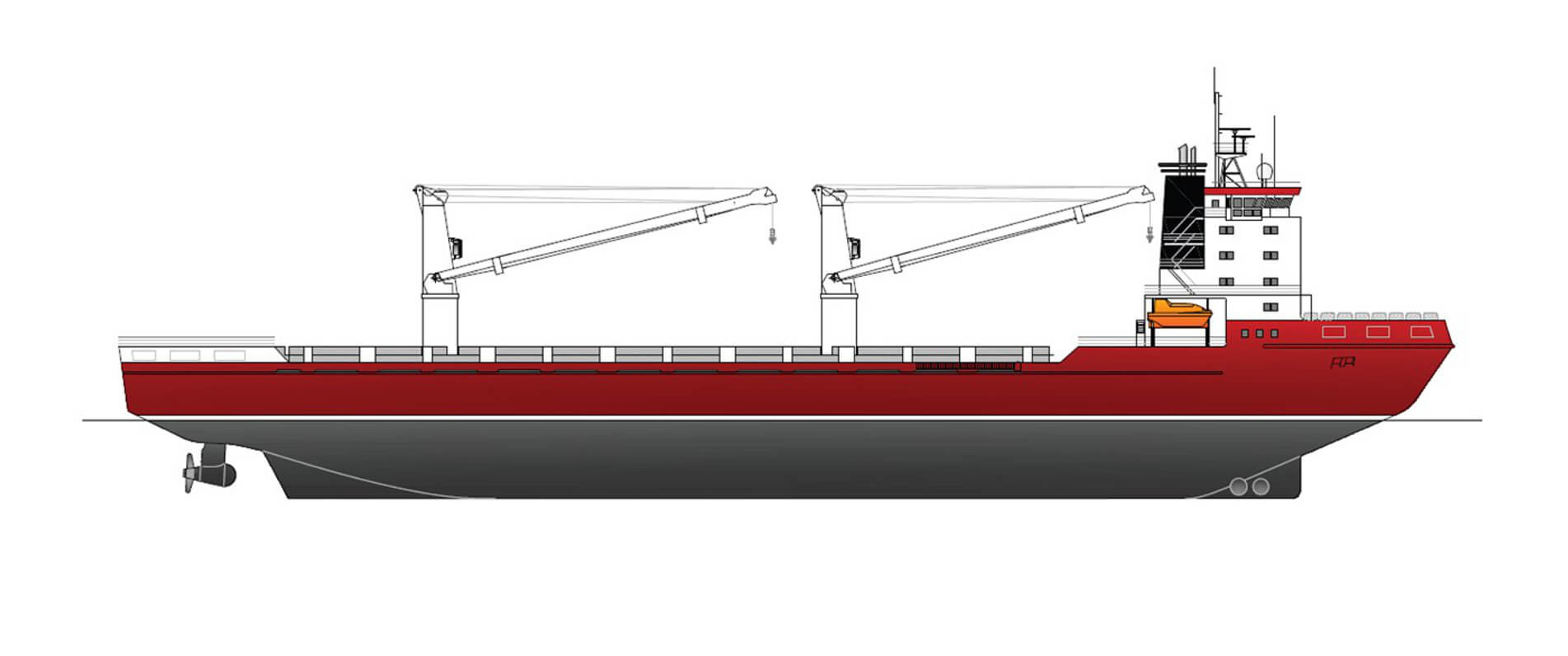

The vessel is designed as a Multipurpose Vessel for worldwide and particularly polar operations. It is designed to carry all kinds of heavy cargoes, bulk cargoes and containers without cell guides.

Main dimensions

  • Length o.a. 144.50 m
  • Length p.p. 126.60 m
  • Breadth mld 23.00 m
  • Depth to main deck 13.70 m
  • Deadweight 10.000 t
  • Cargo holds 16515 m3
  • Max. TEU 1043
  • Heavy fuel oil 1550 m3
  • Marine diesel oil 350 m3
  • Fresh water 100 m3
  • Water ballast 7040 m3
  • Two cargo cranes, each 350 t SWL at 12 m
  • Service speed 16.5 kn
  • Diesel electric propulsion
  • Main engines 4 x medium diesel engines
  • Installed power 17.5 MW
  • Bow thruster 2 x 700 KW
  • Range 14.000 nm
  • Classification GL
  • PC3 ice strengthened
