PROJECT OVERVIEW
  • VESSEL TYPE: Special Purpose vessels
  • Vessel name: Windfarm Infield Cabler Layer
Scope of work
  • Concept Design
Project specification

Download specification

The vessel is designed for unrestricted service.

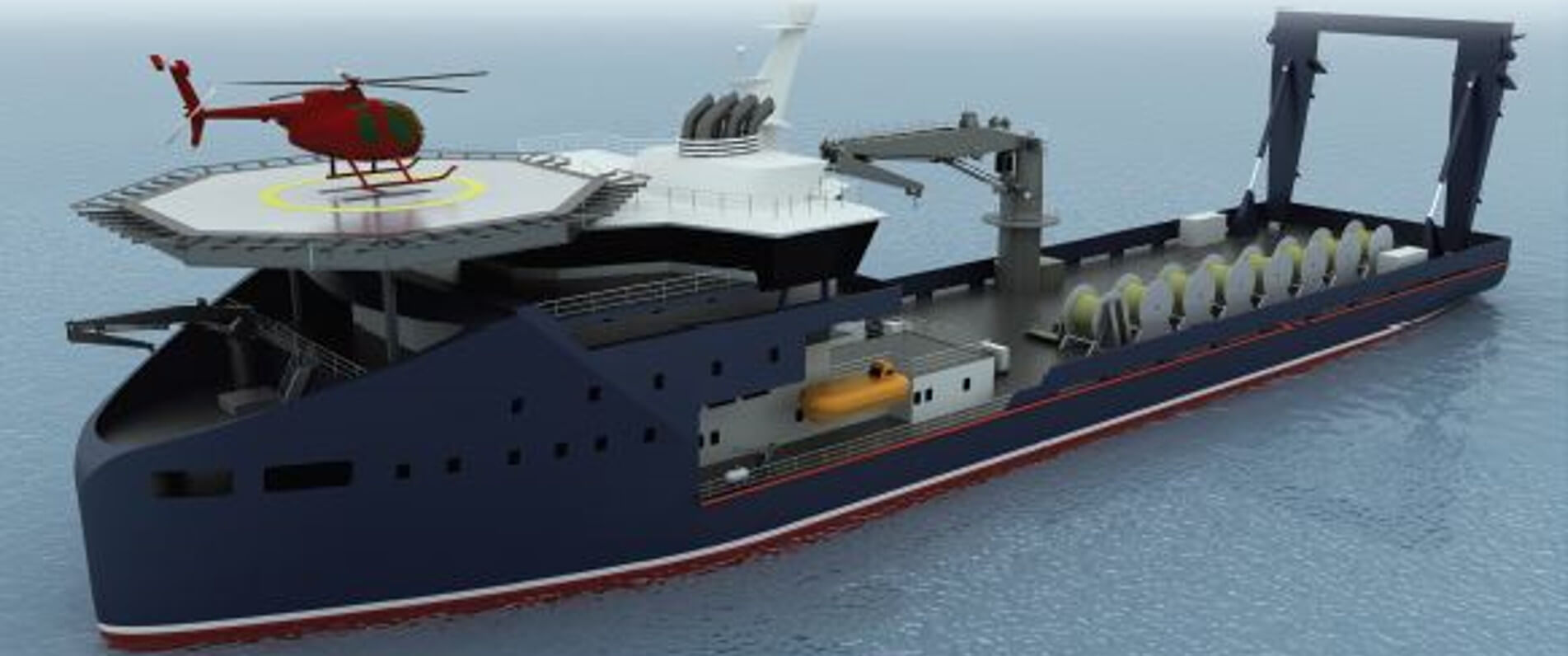

The working deck is about 60 m x 24 m. Recessed and flush container sockets for twist lock operation are fitted.

Below deck are three separate holds. The forward hold for the main-cable reel (diameter of abt 20 m). The two aft most holds are with flush hatches. A hydraulic operated stern mounted A-frame is fitted. The capacity is 25 tons on the entire span and the outreach is abt. 10.0 m aft and forward of transom. Hoisting winch for A-frame is below deck in the winch room aft.

A heave compensated offshore crane is placed in starboard side. The crane is of knuckle-boom type and have a capacity of 25 tons at an outreach of 30 m for lift internally on the ship deck or at quay. For sea lift and ship to ship lift , the capacity can be reduced.

Main Dimensions

  • Length o.a.: 116.90 m
  • Length p.p.: 111.50 m
  • Breadth moulded: 24.00 m
  • Depth moulded: 9.80 m
  • Draught (design): 6.50 m
  • Deadweight: 6310 t
  • No. of crew: 60 pers
  • Service (90 % MCR): 13 kn

Classification: DNV
