PROJECT OVERVIEW
  • VESSEL TYPE: Special Purpose Vessel
  • VESSEL Name: Ocean Factory Trawler
Scope of work
  • Concept Design
Project specification

Download specification

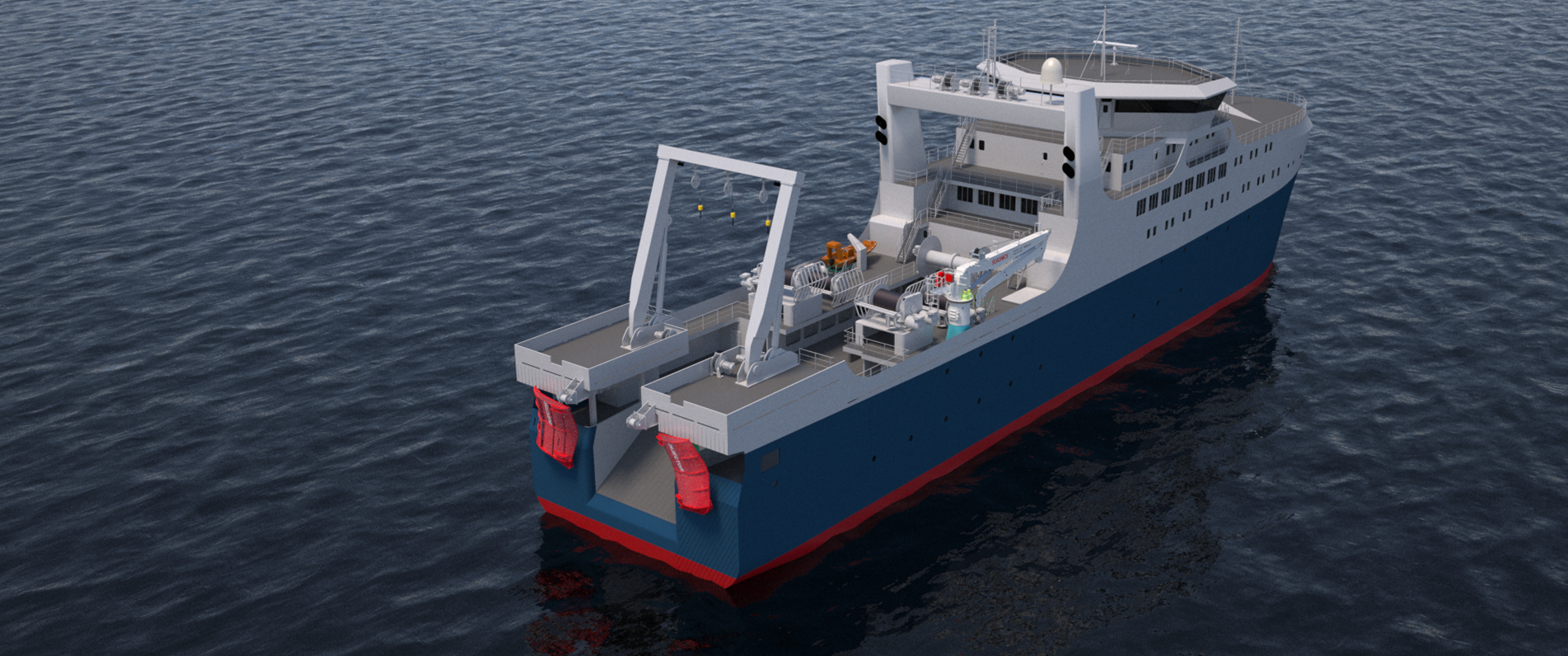

The new design is a complete rethink of all main features, construction and components of the classic ocean factory trawler. Improvements have been made to almost every aspect of the original layout bringing out an entirely new functionality and simplicity. Having the cargo hold and engine room kept separated on the lower decks in the full length of the vessel generates the changes of the entire layout. Having a linear arrangement on these decks opens up new options for functionality and workflow, and use of space throughout the entire vessel.

TECHNICAL DATA

Length o.a. 80.00 m
Length p.p. 77.75 m
Breadth, moulded 16.20 m
Draught, scantling 7.00 m
Dept to ‘Trawl Deck’ 10.90 m
Depth to main deck (freeboard deck) 7.80 m
Depth to tween deck 4.55 m

Single berth cabins 32 pcs
Cargo hold 800 m2 /2,000 m3
Holding / Packing 200 m3
Processing area 700 m2

Service speed 16.00 kn
